How to Install a Schlage Home Front Electronic Deadbolt: Upgrade your home security with the Schlage Home Front Electronic Deadbolt! In this detailed tutorial, Terry from Mr. Locksmith walks you through the complete installation process, from drilling the correct holes to wiring, battery setup, and programming. Learn how to correctly install the mounting plate, secure the wiring harness, and ensure your lock operates smoothly every time.

This step-by-step guide also covers essential tips for beginners, including the best practices for battery installation, avoiding cross-threaded screws, and programming multiple user codes. Whether you’re a DIY homeowner or an aspiring locksmith, this tutorial equips you with everything you need for a secure, reliable electronic deadbolt setup.

Stay tuned for future videos covering advanced programming, troubleshooting, and lock maintenance tips to maximize your Schlage deadbolt’s performance. Enhance your security and confidence with this easy-to-follow guide! (Source: Terry Whin-Yates)

Source: Mr. Locksmith Youtube http://www.youtube.com/user/24hrMrLocksmith

How to Install a Schlage Home Front Electronic Deadbolt

Join Terry from Mr. Locksmith as he demonstrates the full installation of a Schlage Home Front Electronic Deadbolt. This video walks you through:

Drilling and prepping your door
Installing the interior mounting plate
Connecting the wiring harness
Battery installation tips
Lock testing and programming

Mr. Locksmith 604-330-9915

Mr. Locksmith Automotive (604) 259-7617

Perfect for homeowners, locksmith apprentices, and DIY enthusiasts. Stay tuned for additional videos covering full programming and advanced tips!

Subscribe for more locksmith tutorials and tips: [Insert Your Channel Link]

Installing a Schlage Home Front Electronic Deadbolt is a straightforward process, but there are a few essential steps to ensure everything fits properly and works reliably. In this Mr. Locksmith walkthrough, I’ll show you how to install the lock, wire the electronics, insert the batteries, and get the lock ready for programming.

This guide is perfect for homeowners, DIYers, and locksmith apprentices learning how to work with electronic deadbolts.

Schlage Home Front Deadbolt Mr Locksmith

Required Door Prep

Before installation, your door must already have the correct holes drilled:

2-1/8″ (54mm) hole for the deadbolt
1″ (25mm) cross-bore on the edge of the door

If your door is not prepped correctly, the lock will not fit or operate smoothly.

Step 1: Installing the Inside Plate

The Schlage Home Front kit includes an interior mounting plate. Schlage makes this easy by clearly marking:

“Against Door”
“Up” arrows
Cable path indicators

Feed the electronic cable underneath the tailpiece and through the channel on the mounting plate. Make sure the cable is not pinched or twisted.

Schlage includes a neoprene weather seal, which helps with water resistance—don’t skip this step.

Step 2: Aligning and Securing the Mounting Bolts

Once everything is lined up:

Insert the two long mounting bolts from the interior side.
Start them by hand using a screwdriver to avoid cross-threading. (This is mandatory for beginners!)
After each bolt is properly seated, you can use a driver on low torque to snug them up.

Locksmith tip: Never overtighten the bolts—just snug is good. You can check alignment by stepping to the front of the door to ensure the keypad is straight.

Step 3: Opening the Battery Compartment

To access the battery tray:

Press inward on the two release tabs at the top of the interior unit.
Lift and remove the cover.

Some older Schlage models include default programming codes printed inside the battery cover, but this version uses a factory default code and requires immediate programming.

Step 4: Connecting the Electronic Cable

The wiring harness is simple—red to red.
Snap the connectors together and ensure the wire follows the guide track so it doesn’t get pinched.

Before full assembly, you can briefly test the electronics. Many locksmiths wait until final assembly, but this model is safe to test early.

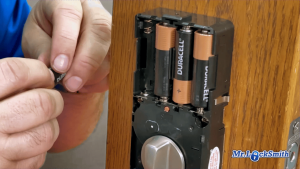

Step 5: Installing the Batteries

This lock uses four AA alkaline batteries.

Important battery tips:

Use alkaline, not rechargeable or lithium.
Rechargeables and lithium batteries fail differently and may skip low-battery warnings.
Alkaline batteries give you the familiar “chirp” warning—just like a smoke detector.

Insert the batteries, snap the cover back on, and the lock should automatically hand itself (determine left or right swing).

Step 6: Testing the Lock

The factory default user code is:

➡️ 1-2-3-4-5-6

Test locking and unlocking from the keypad and ensure the mechanical key operates smoothly.

Pressing the Schlage button from the outside will lock the door.
Entering the default code will unlock it.

Step 7: Programming the Lock

Once installed, you should:

Create a new programming code (4–6 digits).
Add up to 10 user codes.
Test each code before closing the door.

If something goes wrong, don’t worry—these locks include a simple factory reset process so you can start over.

A separate tutorial will cover full programming instructions step-by-step.

Final Thoughts

The Schlage Home Front Electronic Deadbolt is a well-designed and reliable keypad lock. With clear markings, a simple wiring harness, and straightforward installation steps, this is a great option for homeowners or anyone upgrading to electronic access.

Stay tuned—more Mr. Locksmith tutorials are coming soon, including full programming instructions for this model! Source: Terry Whin-Yates Mr. Locksmith Linkedin
